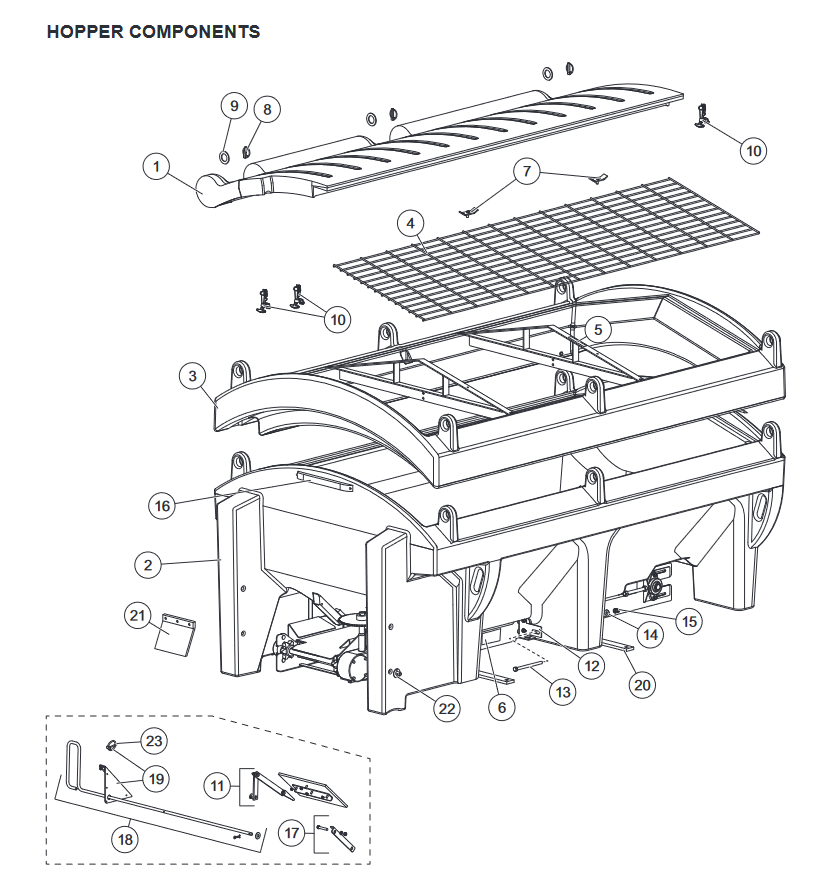

To order parts, click on the the part number in the table below the diagram. All linked parts are available. Certain components may only be available in a kit and not individually.
| Hopper Assembly | |||||||
|---|---|---|---|---|---|---|---|
| Item | Part | Qty | Description | Item | Part | Qty | Description |
| 1 | 78018 | 1 | Poly Hopper Lid, 7′ (DS) – Fits units with serial numbers beginning with 180530 and lower. | 14 | 4 | 1/2‑13 Hex Locknut SS | |
| 78288 | 1 | Poly Hopper Lid, 7′ (DS) – Fits units with serial numbers beginning with 180531 and higher. | ns | 8 | 3/8‑16 x 1 Carriage Bolt SS | ||
| 78019 | 1 | Poly Hopper Lid, 8′ (DS) | ns | 8 | 3/8 Lock Washer SS | ||
| ns | 78020 | 1 | Poly Hopper Lid, 7′ (PS) – Fits units with serial numbers beginning with 180530 and lower. | ns | 8 | 3/8‑16 Hex Nut SS | |
| 78290 | 1 | Poly Hopper Lid, 7′ (PS) – Fits units with serial numbers beginning with 180531 and higher. | 15 | 78048‑1 | 1 | CHMSL Kit (w/fasteners) | |
| 78021 | 1 | Poly Hopper Lid, 8′ (PS) | 16 | 78083 | 1 | Feed Gate Guide w/Fasteners Kit | |
| 2 | 78009 | 1 | Poly Hopper Body, 7′ | 17 | 78094 | 1 | Feed Gate Handle Kit |
| 78012 | 1 | Poly Hopper Body, 8′ | 18 | 78098 | 1 | Feed Gate Detent Bracket Kit | |
| 3 | 78226 | 1 | Poly Hopper Collar, 8′ | ns | 4 | 3/8‑16 x 1‑1/2 Hex Cap Screw | |
| 4 | 78115 | 2 | Top Screen, 7′ (painted) | 19 | 78109 | 2 | Mounting Bar w/Hardware |
| 78116 | 2 | Top Screen, 8′ (painted) | ns | 78242 | 1 | Poly Hopper Collar Hardware Kit | |
| 5 | 78117‑2 | 2 | Top Screen Brace w/Label | 20 | 78262 | 2 | Chute Attachment Sleeve Kit |
| 6 | 96038 | 4 | Wing Bolt | 21 | 93042 | 1 | 3/16 Linchpin |
| 7 | 93010 | 6 | 7/16 Linchpin | 22 | 99748 | 1 | Chute Connector Clip Kit |
| 8 | 78097 | 6 | Washer 2.5 OD x 1.53 ID SS | ns | 68584 | 2 | Label – Warning/Caution, Spreaders |
| 9 | 65224 | 4 | Rubber Hold‑Down Strap | ns | 11100 | 1 | Label – Warning, Rear Camera |
| ns | 99775 | 1 | Cable Boot | ns | 67272 | Label – Caution, Do Not Lift | |
| 10 | 78118 | 1 | Feed Gate Assembly Kit | 23 | 90601 | 2 | 1/4 x 1‑1/2 Cotter Pin |
| 11 | 78119 | 3 | Hopper Mounting Bracket (PS) | 24 | 1 | Pin Retainer | |
| ns | 78133 | 3 | Hopper Mounting Bracket (DS) | 25 | 2 | #10 x 1‑1/2 Pan Head Phillips Screw SS | |
| 12 | 4 | 1/2‑13 x 7‑1/2 Hex Cap Screw SS | 26 | 2 | 3/16 Pop Rivet Aluminum | ||
| 13 | 4 | 1/2 Flat Washer SS | ns | 99758 | 1 | Label – Warning, Chute Connector Dump Switch | |
| ns = Not Shown | SS = Stainless Steel | ||||||
