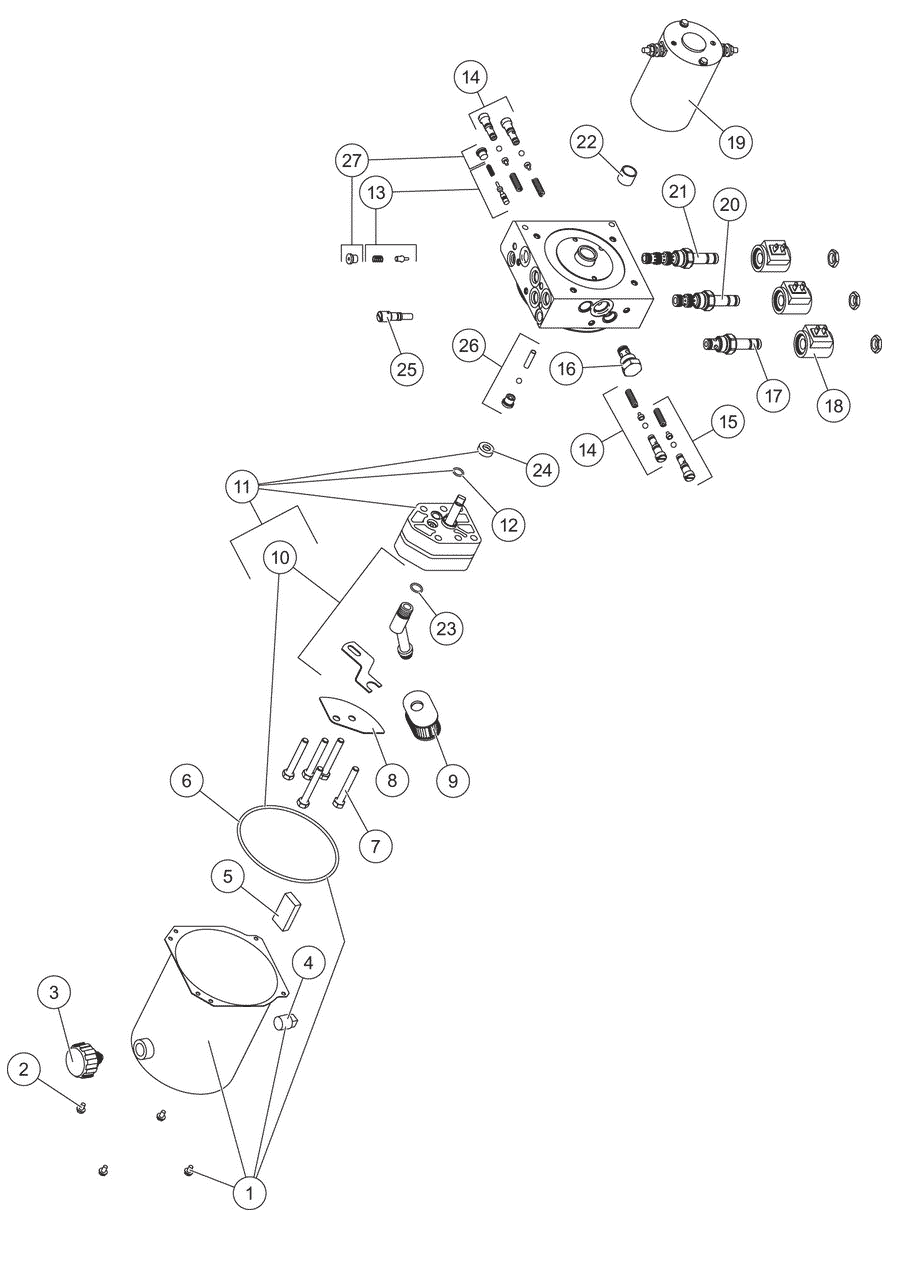

HTS™ Hydraulic Unit Diagram

Add parts to cart from list

1	5% OFF Part # 48538 – RESERVOIR KIT Original price was: $110.94.Current price is: $105.40. Part # 48538 - RESERVOIR KIT quantity -
2	5% OFF Part # 66607 – 10-24X5/16 MACHINE SCREW Original price was: $1.49.Current price is: $1.42. Part # 66607 - 10-24X5/16 MACHINE SCREW quantity -
3	15% OFF Western 21727-2K – 3/8″ NPT Hydraulic Reservoir Breather Kit Original price was: $47.08.Current price is: $40.00. Western 21727-2K – 3/8" NPT Hydraulic Reservoir Breather Kit quantity -
4	5% OFF Part # 92079 – PLUG 3/8 NPTF SQ Original price was: $3.30.Current price is: $3.14. Part # 92079 - PLUG 3/8 NPTF SQ quantity -
5	5% OFF Part # 73897 – MAGNET Original price was: $5.61.Current price is: $5.33. Part # 73897 - MAGNET quantity -
6	5% OFF Western Part # 66519 – O-RING 2-250 Original price was: $10.32.Current price is: $9.81. Western Part # 66519 - O-RING 2-250 quantity -
7	Western Plows Part # 90073 $2.28 Western Plows Part # 90073 quantity -
8	Western Plows Part # 48464 $6.75 Western Plows Part # 48464 quantity -
9	5% OFF Western Plows Part # 56789-5 Hydraulic Suction Filter Original price was: $18.84.Current price is: $17.91. Western Plows Part # 56789-5 Hydraulic Suction Filter quantity -
10	5% OFF Western 66763-1 – Hydraulic Inlet Fitting/Filter Kit Original price was: $22.52.Current price is: $21.39. Western 66763-1 – Hydraulic Inlet Fitting/Filter Kit quantity -
11	5% OFF Western Plows Part # 21501-1 Hydraulic Pump Kit – 28856 pump shaft seal repair kit NOT included Original price was: $491.94.Current price is: $467.34. Western Plows Part # 21501-1 Hydraulic Pump Kit - 28856 pump shaft seal repair kit NOT included quantity -
12	5% OFF Part # 56274 – O-RING – 013 Original price was: $2.38.Current price is: $2.27. Part # 56274 - O-RING - 013 quantity -
13	5% OFF Western Plows Part # 49226K Original price was: $49.97.Current price is: $47.47. Western Plows Part # 49226K quantity -
14	5% OFF Western Plows Part # 49138K-5 Original price was: $19.80.Current price is: $18.82. Western Plows Part # 49138K-5 quantity -
15	5% OFF Western Plows Part # 27792-1 Original price was: $18.52.Current price is: $17.60. Western Plows Part # 27792-1 quantity -
16	Western Plows Part # 44334-1 $41.29 Western Plows Part # 44334-1 quantity -
17	5% OFF Western 49227K-2 – 2-Way HYD Valve W/Nut Original price was: $80.16.Current price is: $76.15. Western 49227K-2 – 2-Way HYD Valve W/Nut quantity -
18	5% OFF Western 49230K-2 – Solenoid Valve Coil with Spade Terminals Original price was: $26.45.Current price is: $25.13. Western 49230K-2 – Solenoid Valve Coil with Spade Terminals quantity -
19	11% OFF Western 48543-1 – 3″ Motor Assembly (Replaces 27753) Original price was: $279.97.Current price is: $249.00. Western 48543-1 – 3" Motor Assembly (Replaces 27753) quantity -
20	5% OFF Western Plows Part # 66608-1 Original price was: $158.96.Current price is: $151.02. Western Plows Part # 66608-1 quantity -
21	5% OFF Western 49229K-1 – 4-Way Hydraulic Valve with Nut Original price was: $124.85.Current price is: $118.61. Western 49229K-1 – 4-Way Hydraulic Valve with Nut quantity -
22	Western Plows Part # 56364 $6.61 Western Plows Part # 56364 quantity -
23	5% OFF Part # 56416 – O-RING – 014 Original price was: $0.61.Current price is: $0.58. Part # 56416 - O-RING - 014 quantity -
24	5% OFF Part # 66515 – PUMP SHAFT SEAL Original price was: $8.75.Current price is: $8.32. Part # 66515 - PUMP SHAFT SEAL quantity -
25	5% OFF Part # 48517 – QUILL Original price was: $52.54.Current price is: $49.91. Part # 48517 - QUILL quantity -
26	Western Plows Part # 48518 $13.77 Western Plows Part # 48518 quantity -
27	5% OFF Part # 92960 – PLUG, HEX SOCKET -3 M ORB Original price was: $7.38.Current price is: $7.01. Part # 92960 - PLUG, HEX SOCKET -3 M ORB quantity -

HTS™ Hydraulic Unit Diagram

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27
