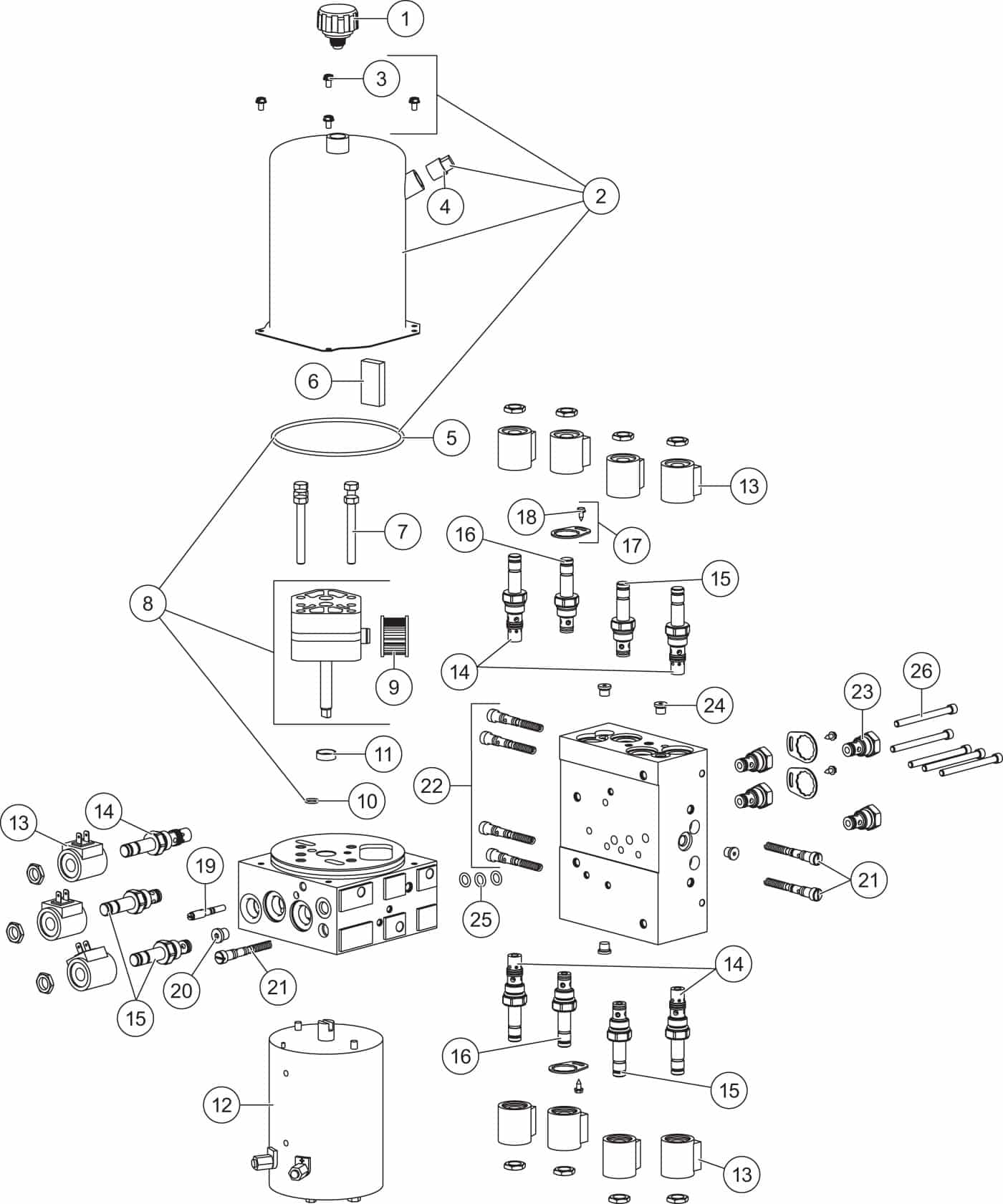

MVP Plus & MVP 3 Hydraulic Unit Diagram

Mouse over or Tap Diagram to Zoom

Add parts to cart from list

1	5% OFF Western Plows Part # 21727-2K Original price was: $46.06.Current price is: $43.75. Western Plows Part # 21727-2K quantity -
2	5% OFF Western Plows Part # 44327-3 Original price was: $78.00.Current price is: $74.10. Western Plows Part # 44327-3 quantity -
3	5% OFF Part # 66607 – 10-24X5/16 MACHINE SCREW Original price was: $1.49.Current price is: $1.42. Part # 66607 - 10-24X5/16 MACHINE SCREW quantity -
4	5% OFF Part # 92079 – PLUG 3/8 NPTF SQ Original price was: $3.30.Current price is: $3.14. Part # 92079 - PLUG 3/8 NPTF SQ quantity -
5	5% OFF Part # 66519 – O-RING 2-250 Original price was: $10.32.Current price is: $9.81. Part # 66519 - O-RING 2-250 quantity -
6	5% OFF Part # 73897 – MAGNET Original price was: $5.61.Current price is: $5.33. Part # 73897 - MAGNET quantity -
7	5/16‑18 x 2‑1/2 Hex Cap Screw G5
8	5% OFF Western Plows Part # 44328-2 Original price was: $333.99.Current price is: $317.29. Western Plows Part # 44328-2 quantity -
9	5% OFF Western Plows Part # 56789-5 Original price was: $18.84.Current price is: $17.91. Western Plows Part # 56789-5 quantity -
10	5% OFF Part # 56274 – O-RING – 013 Original price was: $2.38.Current price is: $2.27. Part # 56274 - O-RING - 013 quantity -
11	5% OFF Part # 66515 – PUMP SHAFT SEAL Original price was: $8.75.Current price is: $8.32. Part # 66515 - PUMP SHAFT SEAL quantity -
12	15% OFF Western Plow Motor – Part # 21500-1 Original price was: $254.15.Current price is: $216.02. Western Plow Motor - Part # 21500-1 quantity -
13	5% OFF Western Plows Part # 49230K-2 Original price was: $25.88.Current price is: $24.59. Western Plows Part # 49230K-2 quantity -
14	5% OFF Part # 44332 – VALVE SVCV08-20 W/ NUT Original price was: $161.85.Current price is: $153.75. Part # 44332 - VALVE SVCV08-20 W/ NUT quantity -
15	5% OFF Western Plows Part # 49227K-2 Original price was: $78.43.Current price is: $74.51. Western Plows Part # 49227K-2 quantity -
16	5% OFF Part # 44336 – VALVE SF08-2015 W/NUT Original price was: $126.84.Current price is: $120.50. Part # 44336 - VALVE SF08-2015 W/NUT quantity -
19	5% OFF Part # 56662 – QUILL ASSY Original price was: $36.87.Current price is: $35.03. Part # 56662 - QUILL ASSY quantity - 5% OFF Part # 48517 – QUILL Original price was: $51.40.Current price is: $48.82. Part # 48517 - QUILL quantity -
20	Western Plows Part # 44344 $2.72 Western Plows Part # 44344 quantity -
21	5% OFF Western Plows Part # 49138K-5 Original price was: $19.37.Current price is: $18.41. Western Plows Part # 49138K-5 quantity -
22	5% OFF Part # 44338 – RELIEF VALVE KIT 2 SETS Original price was: $36.64.Current price is: $34.81. Part # 44338 - RELIEF VALVE KIT 2 SETS quantity -
23	Western Plows Part # 44334-1 $40.40 Western Plows Part # 44334-1 quantity -
24	5% OFF Part # 92960 – PLUG, HEX SOCKET -3 M ORB Original price was: $7.38.Current price is: $7.01. Part # 92960 - PLUG, HEX SOCKET -3 M ORB quantity -
25	5% OFF Part # 29077 – O-RING -110 Original price was: $1.53.Current price is: $1.46. Part # 29077 - O-RING -110 quantity -
26	1/4‑20 x 3 Socket Cap Screw

MVP Plus & MVP 3 Hydraulic Unit Diagram

Mouse over or Tap Diagram to Zoom

Add parts to cart from list

1

2

3

4

5

6

7

5/16‑18 x 2‑1/2 Hex Cap Screw G5

8

9

10

11

12

13

14

15

16

19

20

21

22

23

24

25

26

1/4‑20 x 3 Socket Cap Screw
