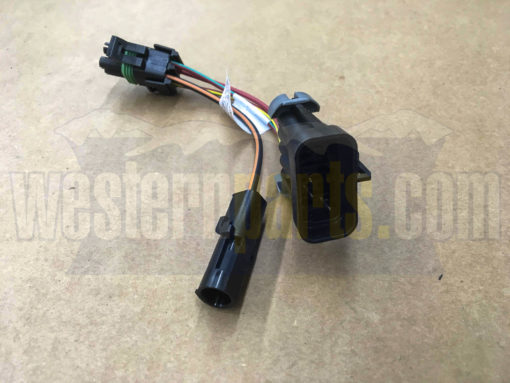

Western engineers the Western 29047 Adapter to establish secure data pathways inside converted electrical systems. Additionally, this vehicle control adapter harness safely merges truck lighting inputs with the primary isolation module port configurations. Because non-multiplexed configurations require precise pinning schemas to actuate high and low beams correctly, mechanics depend on original equipment wiring bridges. Therefore, this genuine adapter prevents system back-feeding and erratic headlight switching behavior during midnight snow runs.
Pre-terminated factory plugs ensure positive locking securement and immediate signal continuity within the compact engine bay layout. Symmetrical weather-sealed connectors insulate delicate electrical pins from high-pressure moisture intrusion and aggressive roadway brine compounds. Consequently, fleet mechanics execute rapid seasonal wiring transfers without custom wire splicing or pinning alterations. Furthermore, the specialized low-draw conductor architecture handles variable automotive signal currents reliably to secure total electrical stability on active clearing jobs.
Technical Specifications & Fleet Benefits
-
Specialized factory pin mapping bridges truck-side control looms to standard 3-port isolation modules smoothly.
-
Molded impact-resistant plug housings shield interior electrical terminals from extreme engine bay heat cycles.
-
Weatherproof localized sealing skirts prevent corrosive moisture entry to maintain consistent circuit voltage levels.
-
Strict original equipment manufacturer dimensions eliminate field wiring adaptations or loose circuit alignments.
-
Direct configuration compatibility eliminates complex custom circuit splicing to preserve vehicle electronic parameters.
Related Parts & Cross-Reference Table
| Part Number | Item Name | Technical Role |
| 29070-1 | 3-Port Isolation Module | Electronic control hub directs vehicle electrical signals between truck and plow light clusters. |
| 26346 | Vehicle Control Harness | Main 7-pin truck-side cabin harness delivers joystick or handheld control power to the engine bay. |
| 56496 | 10-Pin Control Connector | Structural replacement socket termination unit repairs broken vehicle-side handheld control ports. |
| 49326 | Dielectric Grease | Premium silicone compound compound insulates multi-pin adapter interfaces from aggressive salt brine deterioration. |
Always refer to your Western Plow’s documentation and vehicle-specific installation instructions to confirm compatibility and proper installation procedures.
