Part # 43135 – GLAND NUT ASSY 1-3/4

GLAND NUT ASSY 1-3/4

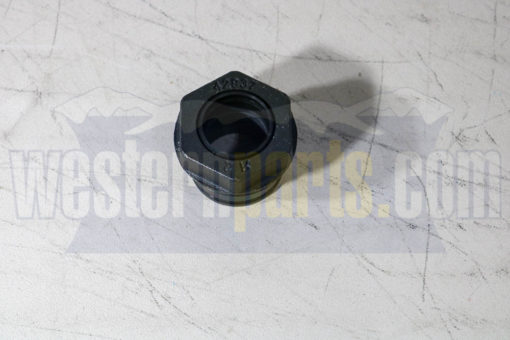

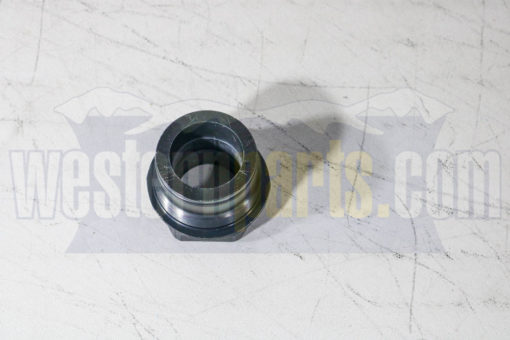

Western Part # 43135 is a Gland Nut Assembly, specifically sized for 1-3/4 inch hydraulic cylinders. This assembly is a critical component used in the hydraulic rams of Western Snow Plows, where it functions to seal the end of the cylinder bore and retain the piston rod.

The gland nut assembly’s primary purpose is to hold the rod seal and wiper seal securely in place around the piston rod. This creates a tight, leak-proof barrier that prevents hydraulic fluid from escaping the cylinder and keeps contaminants (like dirt, water, and debris) from entering. The “1-3/4 inch” designation refers to the size of the piston rod diameter it is designed to accommodate, ensuring a precise fit for effective sealing. This assembly often includes the gland nut itself, along with the internal seals (rod seal, wiper seal) already pre-installed, simplifying replacement.

Replacing a worn, damaged, or leaking gland nut assembly with Western Part # 43135 is essential for maintaining the integrity and efficiency of your plow’s hydraulic cylinders. A properly functioning gland nut assembly prevents fluid loss, maintains hydraulic pressure, and protects internal cylinder components from premature wear caused by contamination. This ensures the smooth and reliable operation of your plow’s lifting and angling functions. Always refer to your specific Western Plow model’s documentation and hydraulic cylinder diagrams to confirm compatibility with Part # 43135 and to follow proper installation procedures, including the use of any required specialized tools or torque specifications.
