Western Nighthawk Gen 1 Headlamps Diagram


1	Quick View Part # 28801-1 – HEADLIGHT SERVICE KIT (DS) $207.23 HEADLIGHT SERVICE KIT (DS) Part # 28801-1 - HEADLIGHT SERVICE KIT (DS) quantity Quick View Part # 28802-1 – HEADLIGHT SERVICE KIT (PS) $207.23 HEADLIGHT SERVICE KIT (PS) Part # 28802-1 - HEADLIGHT SERVICE KIT (PS) quantity
2	Quick View Part # 28803-1 – HEADLIGHT REAR COVER KIT $31.55 HEADLIGHT REAR COVER KIT Part # 28803-1 - HEADLIGHT REAR COVER KIT quantity
3	Quick View Part # 28804 – HEADLIGHT MOUNTING HARDWARE $13.52 HEADLIGHT MOUNTING HARDWARE Part # 28804 - HEADLIGHT MOUNTING HARDWARE quantity
4	Quick View Part # 28805 – PARK/TURN SOCKET SERVICE KIT $7.15 PARK/TURN SOCKET SERVICE KIT Part # 28805 - PARK/TURN SOCKET SERVICE KIT quantity
6	Quick View Part # 28806 – H13 HEADLAMP BULB SERVICE KIT $32.52 H13 HEADLAMP BULB SERVICE KIT Part # 28806 - H13 HEADLAMP BULB SERVICE KIT quantity
7	Quick View Part # 28808-1 – COVER SCREWS SERVICE KIT $1.65 COVER SCREWS SERVICE KIT Part # 28808-1 - COVER SCREWS SERVICE KIT quantity
8	Quick View Part # 28213W – HARNESS KIT PLOW LIGHTING H13 $145.73 HARNESS KIT PLOW LIGHTING H13 Part # 28213W - HARNESS KIT PLOW LIGHTING H13 quantity

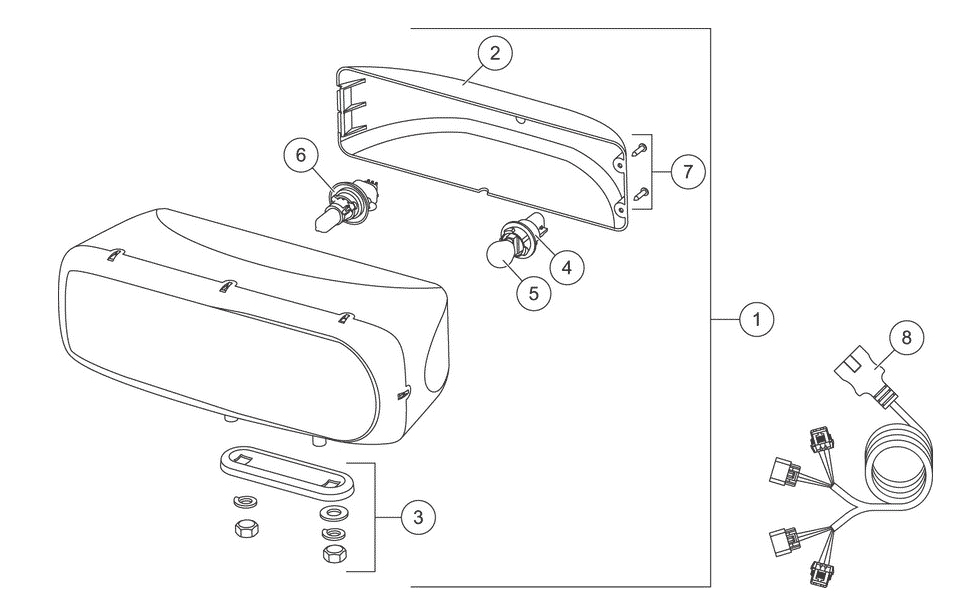

NightHawk Headlamps Diagram
