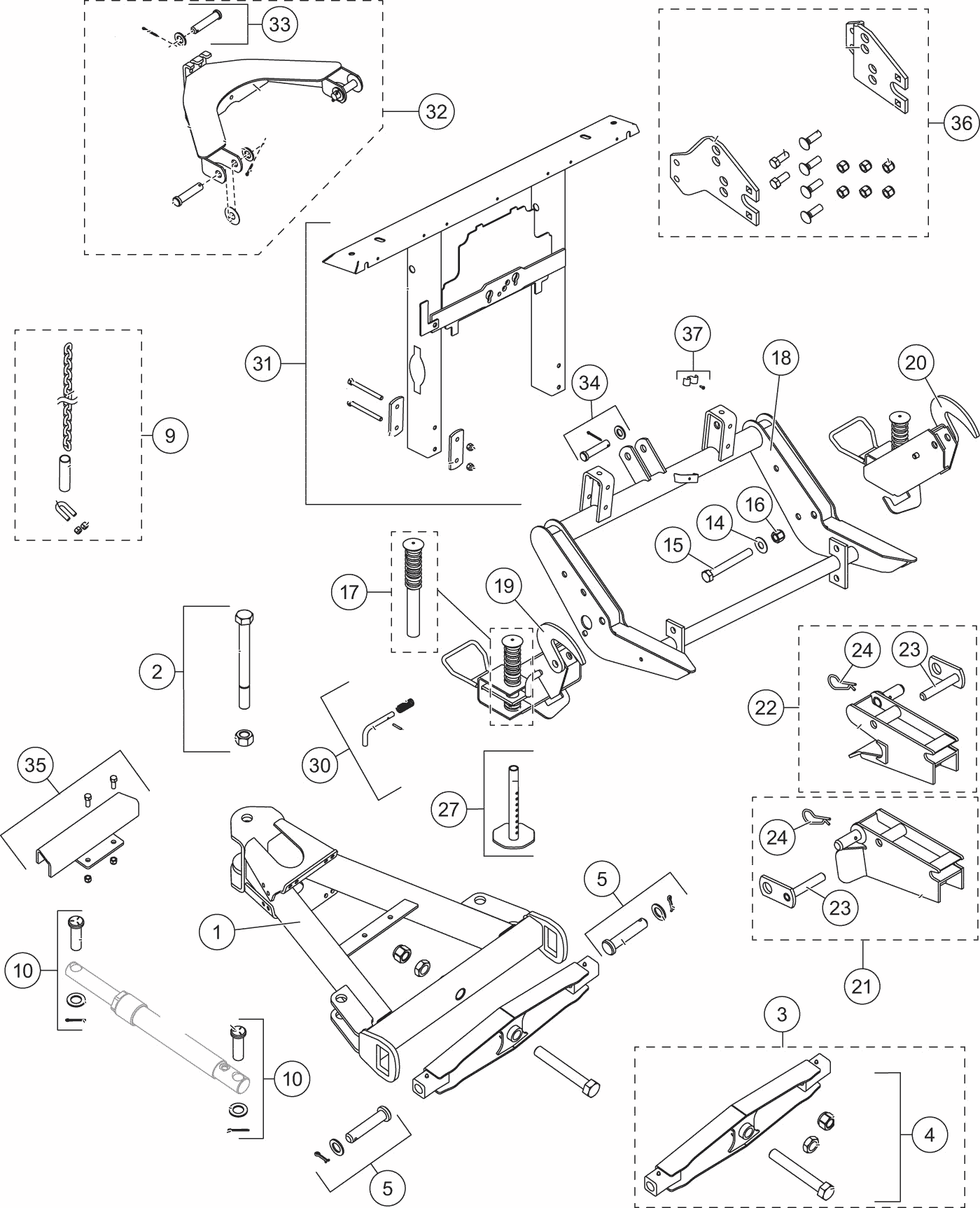

Pro Plow Series 2 UltraMount Lift Frame & A-Frame Diagram

Mouse over or Tap Diagram to Zoom

Add parts to cart from list

1	Western 68291 – UltraMount Pro-Plow A-Frame Assembly $796.69 Western 68291 – UltraMount Pro-Plow A-Frame Assembly quantity -
2	5% OFF Part # 69494 – PIVOT BOLT KIT Original price was: $65.63.Current price is: $62.36. Part # 69494 - PIVOT BOLT KIT quantity -
3	5% OFF Western 67842-1 – UltraMount New Style Greasable Pivot Bar Kit Original price was: $249.76.Current price is: $237.28. Western 67842-1 – UltraMount New Style Greasable Pivot Bar Kit quantity -
4	5% OFF Part # 67855 – PIVOT BOLT KIT Original price was: $27.82.Current price is: $26.42. Part # 67855 - PIVOT BOLT KIT quantity -
5	5% OFF Western 49645 – PIN KIT for PIVOT BAR (Includes Hardware) Original price was: $13.71.Current price is: $13.02. Western 49645 – PIN KIT for PIVOT BAR (Includes Hardware) quantity -
9	5% OFF Western 49033 – Replacement Lift Chain Assembly Original price was: $63.26.Current price is: $60.10. Western 49033 – Replacement Lift Chain Assembly quantity -
10	5% OFF Part # 63973 – RAM PIN KIT Original price was: $21.72.Current price is: $20.63. Part # 63973 - RAM PIN KIT quantity -
14	5% OFF Part # 91147 – FLATWASHER_3/4 TYPE A NARROW Original price was: $0.84.Current price is: $0.80. Part # 91147 - FLATWASHER_3/4 TYPE A NARROW quantity -
15	5% OFF Western 66451 Hexcap Screw: 3/4-10×6 G5 Fastener Original price was: $14.88.Current price is: $14.13. Western 66451 Hexcap Screw: 3/4-10x6 G5 Fastener quantity -
16	5% OFF Western 91338 – HEXLOCKNUT_3/4-10 GB TOPRING Original price was: $5.33.Current price is: $5.06. Western 91338 – HEXLOCKNUT_3/4-10 GB TOPRING quantity -
17	5% OFF Part # 48523 – STAND PLUNGER ASSEMBLY Original price was: $42.46.Current price is: $40.34. Part # 48523 - STAND PLUNGER ASSEMBLY quantity -
18	20% OFF Western 67556-2 – UltraMount Lower Lift Frame Assembly Original price was: $979.99.Current price is: $782.71. Western 67556-2 – UltraMount Lower Lift Frame Assembly quantity -
19	5% OFF Western 72618 – UltraMount Driver Side Stand Assembly Original price was: $388.76.Current price is: $369.32. Western 72618 – UltraMount Driver Side Stand Assembly quantity -
20	5% OFF Western 72617 – UltraMount Passenger Side Stand Assembly Original price was: $388.76.Current price is: $369.32. Western 72617 – UltraMount Passenger Side Stand Assembly quantity -
21	21% OFF Western 76722 – UltraMount Driver Side Receiver Kit (Includes Pin and Clip) Original price was: $328.21.Current price is: $259.00. Western 76722 – UltraMount Driver Side Receiver Kit (Includes Pin and Clip) quantity -
22	21% OFF Western 76718 – UltraMount Passenger Side Receiver Kit (Includes Pin and Clip) Original price was: $328.21.Current price is: $259.00. Western 76718 – UltraMount Passenger Side Receiver Kit (Includes Pin and Clip) quantity -
23	23% OFF Part # 42498 – RECEIVER PIN Original price was: $58.12.Current price is: $45.00. Part # 42498 - RECEIVER PIN quantity -
24	22% OFF Western 91965K-1 – Hairpin Cotter 5/32″ Original price was: $3.72.Current price is: $2.90. Western 91965K-1 – Hairpin Cotter 5/32″ quantity -
27	22% OFF Western 67847 – UltraMount Stand Shoe Kit (Includes Pin) Original price was: $54.80.Current price is: $42.99. Western 67847 – UltraMount Stand Shoe Kit (Includes Pin) quantity -
30	2% OFF Western 67844 – Stand Lock Pin Kit (Includes Hardware Kit) Original price was: $17.41.Current price is: $16.99. Western 67844 – Stand Lock Pin Kit (Includes Hardware Kit) quantity -
31	5% OFF Part # 42351 – UPPER LIFT FRAME KIT Original price was: $510.61.Current price is: $485.07. Part # 42351 - UPPER LIFT FRAME KIT quantity -
32	34% OFF Western Plows Part # 67850-2 Original price was: $162.46.Current price is: $107.23. Western Plows Part # 67850-2 quantity -
33	5% OFF Part # 68740 – 3/4 X 3-1/2 CLEVIS PIN KIT Original price was: $12.13.Current price is: $11.52. Part # 68740 - 3/4 X 3-1/2 CLEVIS PIN KIT quantity -
34	5% OFF Western 93063K – Clevis Pin Kit 3/4″ x 3-1/4″ (Includes Hardware) Original price was: $8.58.Current price is: $8.16. Western 93063K – Clevis Pin Kit 3/4″ x 3-1/4″ (Includes Hardware) quantity -
35	Western Plows Part # 50676 $49.13 Western Plows Part # 50676 quantity -
36	Western Plows Part # 67843 $261.11 Western Plows Part # 67843 quantity -
37	5% OFF Western Plows Part # 49479-1 Original price was: $14.56.Current price is: $13.83. Western Plows Part # 49479-1 quantity -

Pro Plow Series 2 UltraMount Lift Frame & A-Frame Diagram

Mouse over or Tap Diagram to Zoom

Add parts to cart from list

1

2

3

4

5

9

10

14

15

16

17

18

19

20

21

22

23

24

27

30

31

32

33

34

35

36

37
