Cutting Edge Dimension Information (Dimensions listed for single side) | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Length | Height | Thickness | # of Holes | Hole Size | Bolt Size | Bolt Type & Grade | Hole Type | Top to Hole (“) | Edge to Center of (“) | ||
1st Hole | 2nd hole | 3rd Hole | |||||||||
47 3/4″ | 6″ | 1/2″ | 5 | 11/16″ x 1 1/2″ | 5/8-11 x 2 | Carriage Bolt Grade 5 | Slotted | 1 9/16″ | 3 13/16″ | 6 13/16″ | 23 15/32″ |
Cutting Edge Dimension Information | ||
---|---|---|
Length | 47 3/4″ | |
Height | 6″ | |
Thickness | 1/2″ | |
# of Holes | 5 | |
Hole Size | 11/16″ x 1 1/2″ | |
Bolt Size | 5/8-11 x 2 | |
Bolt Type & Grade | Carriage Bolt Grade 5 | |
Hole Type | Slotted | |
Top to Hole (“) | 1 9/16″ | |
Edge to Center of (“) | ||
1st Hole | 3 13/16″ | |
2nd hole | 6 13/16″ | |
3rd Hole | 23 15/32″ |

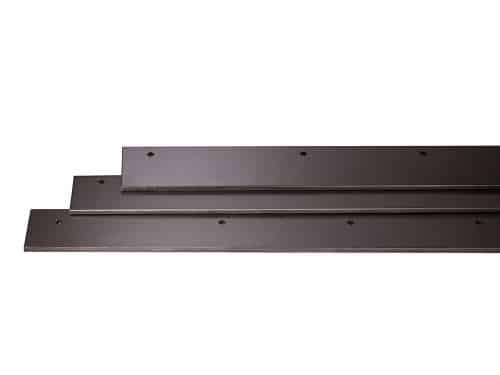

Western Part # 85535 is a Cutting Edge, 10-1/2 feet long, designed for Western MVP Plus and MVP 3 V-Plows. This is the primary wear component that bolts to the bottom of the plow’s moldboard and directly contacts the plowing surface.
This cutting edge is constructed from high-carbon steel, which is specifically chosen for its exceptional abrasion resistance and durability. This allows it to withstand severe impact and constant wear from various road surfaces, including asphalt, concrete, and gravel, as well as the abrasive action of snow and ice. The 10-1/2 foot length is precisely cut to match the full width of the larger MVP Plus and MVP 3 V-plow models when fully extended or angled. It features pre-drilled bolt holes that align perfectly with the base angle of these V-plows, ensuring a secure and proper fit.
Replacing a worn, chipped, or damaged cutting edge with Western Part # 85535 is essential for maintaining optimal scraping performance and efficient snow removal. A fresh, sharp cutting edge ensures cleaner passes, reduces the amount of snow and ice left behind, and minimizes the need for multiple passes, ultimately contributing to time and fuel savings. This genuine Western replacement part ensures a precise fit, optimal performance, and the robust durability you expect from your MVP Plus or MVP 3 V-plow. Always refer to your Western Plow’s documentation and vehicle-specific installation instructions to confirm compatibility and proper installation procedures.
