| Cutting Edge Dimension Information (Dimensions listed for single side) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Length | Height | Thickness | # of Holes | Hole Size | Bolt Size | Bolt Type & Grade | Hole Type | Top to Hole (“) | Edge to Center of (“) | ||
| 1st Hole | 2nd hole | 3rd Hole | |||||||||
| 47 3/4″ | 6″ | 5/8″ | 5 | 11/16″ x 1 1/2″ | 5/8-11 x 2 | Carriage Bolt Grade 5 | Slotted | 1 9/16″ | 3 13/16″ | 6 13/16″ | 23 15/32″ |
| Cutting Edge Dimension Information | ||
|---|---|---|
| Length | 47 3/4″ | |
| Height | 6″ | |
| Thickness | 5/8″ | |
| # of Holes | 5 | |
| Hole Size | 11/16″ x 1 1/2″ | |
| Bolt Size | 5/8-11 x 2 | |
| Bolt Type & Grade | Carriage Bolt Grade 5 | |
| Hole Type | Slotted | |
| Top to Hole (“) | 1 9/16″ | |
| Edge to Center of (“) | ||
| 1st Hole | 3 13/16″ | |
| 2nd hole | 6 13/16″ | |
| 3rd Hole | 23 15/32″ | |

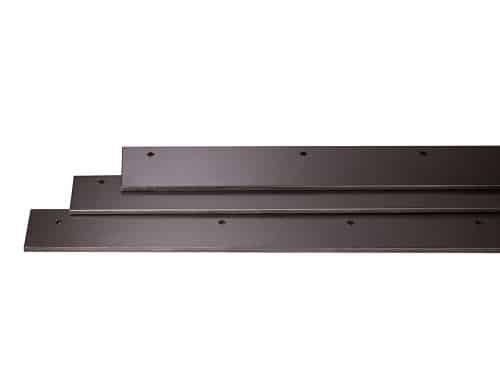

The genuine Western 85359 Cutting Edge Kit restores the clean scraping capability of your multi-position v-plow. This upgraded 5/8-inch thick high-carbon steel replacement set is engineered specifically for 9.5-foot commercial blades. Consequently, a thicker edge shields your expensive steel base angle from severe road friction. Replacing thin or warped edges prevents uneven cutting base damage.
This vehicle-side commercial edge is manufactured from premium high-carbon steel for exceptional abrasion resistance. Because this heavy-duty material handles extreme impacts, it glides over frozen curbs and manholes safely. Furthermore, the comprehensive factory package features matching side wings, center sections, and grade 5 hardware. Therefore, your shop mechanics can complete a rapid full overhaul before winter blizzards arrive.
Extreme Operational Duty with the Western 85359 Edge Kit
Upgrading your fleet equipment with this original factory wear edge ensures peak municipal clearing efficiency. This matched set features precise factory-slotted mounting holes that align perfectly with your original moldboard framework. Furthermore, using premium OEM parts prevents structural frame binding or premature bolt shearing under heavy snow loads. As a result, you minimize winter route downtime and protect your primary machinery investment all season.
-
Designed as a direct factory upgrade for 9’6″ Western MVP Plus and MVP 3 commercial v-plow models.
-
Features an upgraded, ultra-thick 5/8-inch steel profile to deliver maximum wear operational life.
-
Premium high-carbon steel composition cuts through heavy, compacted sub-zero slush and packed snow layers cleanly.
-
Complete kit includes both main scraping wings, a v-plow center edge kit, and full mounting hardware.
-
Replaces standard 1/2-inch wear edges (part number 44567-2) to provide a heavy-duty fleet enhancement solution.
Additional Info and Common Related Parts
| Part Number | Item Name | Technical Role |
| 44567-2 | Standard 1/2″ Edge Kit | Provides the standard factory-weight replacement cutting edge setup for 9.5′ v-plows. |
| 41810-1 | 10″ Rubber Deflector Kit | Forces curling rollback snow spray downward and away from your cab windshield view. |
| 43885 | Cast Curb Guard Kit | Shields the outer corners of your new scraping edges from abrasive concrete curb impacts. |
| 49330 | Hydraulic Fluid (Gallon) | Supplies the premium low-temperature oil required for full system flushes and pump refills. |
Always refer to your Western Plow’s documentation and vehicle-specific installation instructions to confirm compatibility and proper installation procedures.
